Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. Eaton is guided by our commitment to do business right, to operate sustainably, and to help our customers manage power─ today and well into the future.
Eaton fire alarm systems and devices are essential to the protection of people, property, and business continuity in commercial buildings. Early detection of a fire risk can prevent catastrophic damage. The risks associated with failure, from loss of life to irreparable reputational damage, make the selection of a fire system a vitally important process. To ensure the highest levels of safety, all of the people involved in the purchase, installation, commissioning, operation, and maintenance of a fire system need to know that the chosen system and all associated devices can be relied upon.
Cooper
EATON Fire Alarm
Varied solutions with Addressable and Conventional panels, Public Address and Voice Evacuation, and Notification Appliance devices, are available to manage any project applications..
EATON CF3000
EATON 2 Loop Panel
Cooper CF30002G: 2-loop Panel, EN54 Certification Panel, each loop supporting 200 addressable devices, Expandable Up to 4 loops ( Optional Addon Loop Card per card, 2 Loop support.)

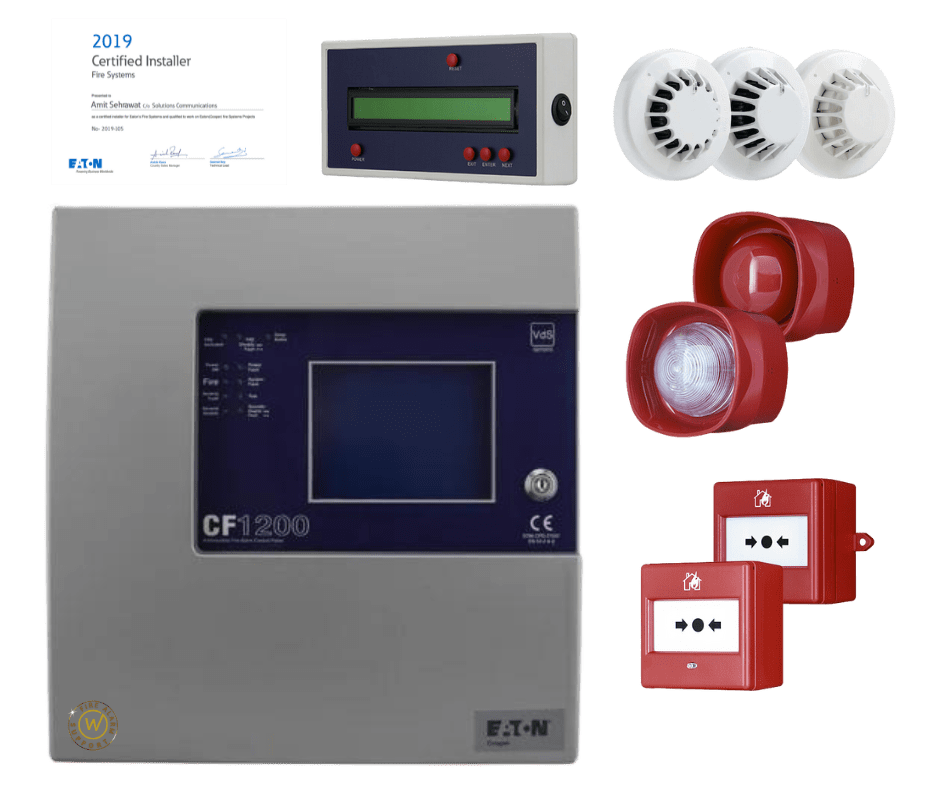

Cooper CF1200VDS: 2-loop panel, each loop supporting 200 addressable devices; non-expandable panel. VDS-certified panel.
EATON 4 Loop Panel
Cooper CF30004G: 4-loop panel, EN54 certification panel, each loop supporting 200 addressable devices, totaling 800 addressable devices per panel.
EATON UL Panel
Eaton's ULCF3000 is a high specification analogue, wall or rack mounted UL listed fire alarm system control panel available in 2 or 4 loop configurations.
Cooper ULCF30002G: 2-loop panel UL listed, UL864 9th edition, 2 or 4 Class A Style 7 SLC loops, expandable up to 4 loops, each loop supporting 200 addressable devices.
Cooper ULCF30004G: 2-loop panel UL listed, UL864 9th edition, 2 or 4 Class A Style 7 SLC loops, expandable up to 4 loops, each loop supporting 200 addressable devices.
EATON CF30004G

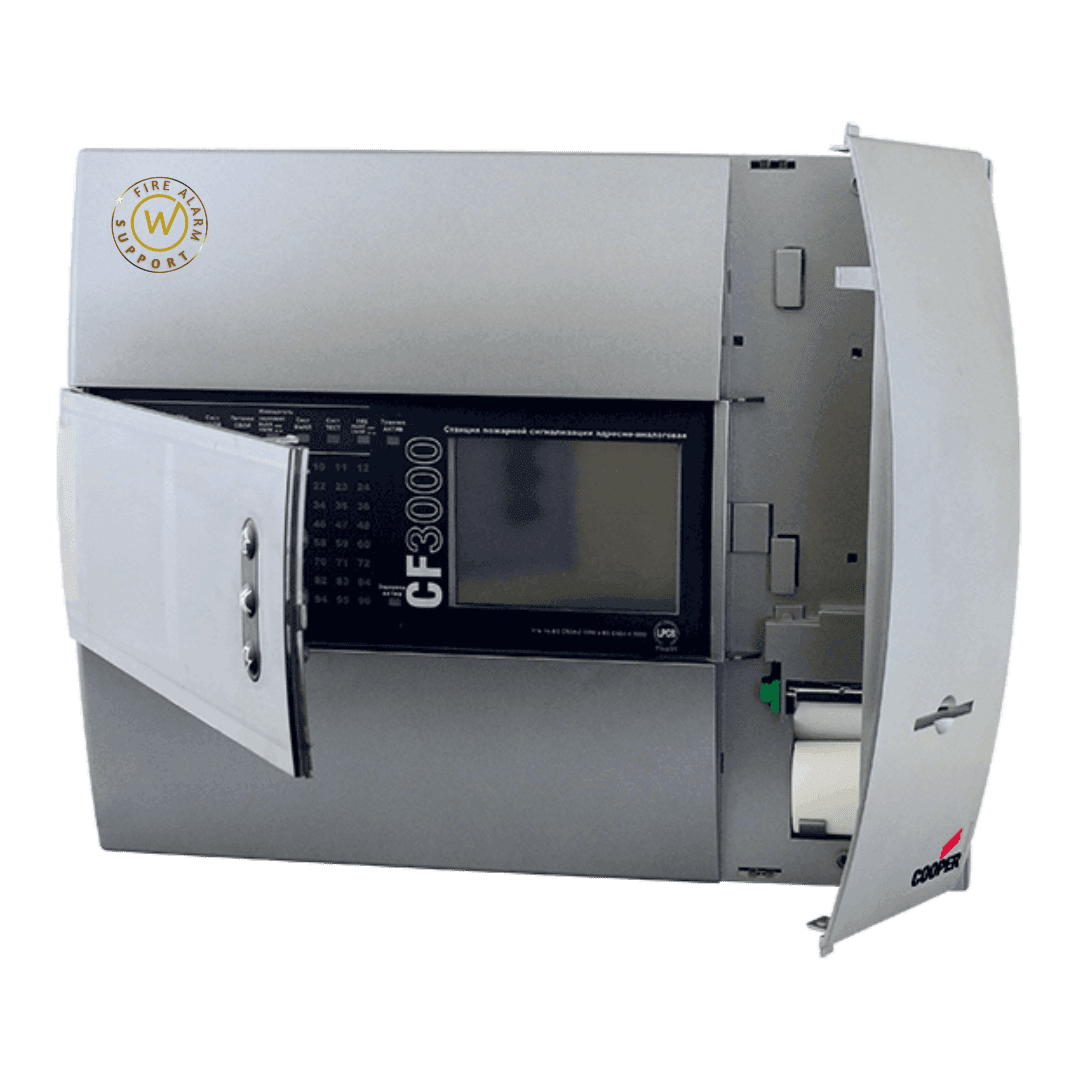

Cooper CF30004G Intelligent Addressable 4-Loop Control Panel. The Cooper CF3000 is a high-spec intelligent addressable control panel that is available in various loop configurations. These panels combine sophisticated functionality with simple operation and an aesthetically pleasing design. The large capacity, ability to support complex cause-and-effect programming, and wide range of user-controllable functions make the system suitable for a diverse range of projects, from sheltered housing to large office developments.
The CF3000 uses soft addressing to minimise installation time and remove the potential for error associated with manual addressing. It can operate as a stand-alone panel or as part of a networked system. They have powerful programming options that allow configurable control over whether messages from specific panels are transmitted around the network or remain local. An extensive range of compatible intelligent addressable system ancillaries are available to work with the CF3000, all of which incorporate an integral short circuit isolator to provide maximum protection against short circuits on the external loop.
EATON CF30002G

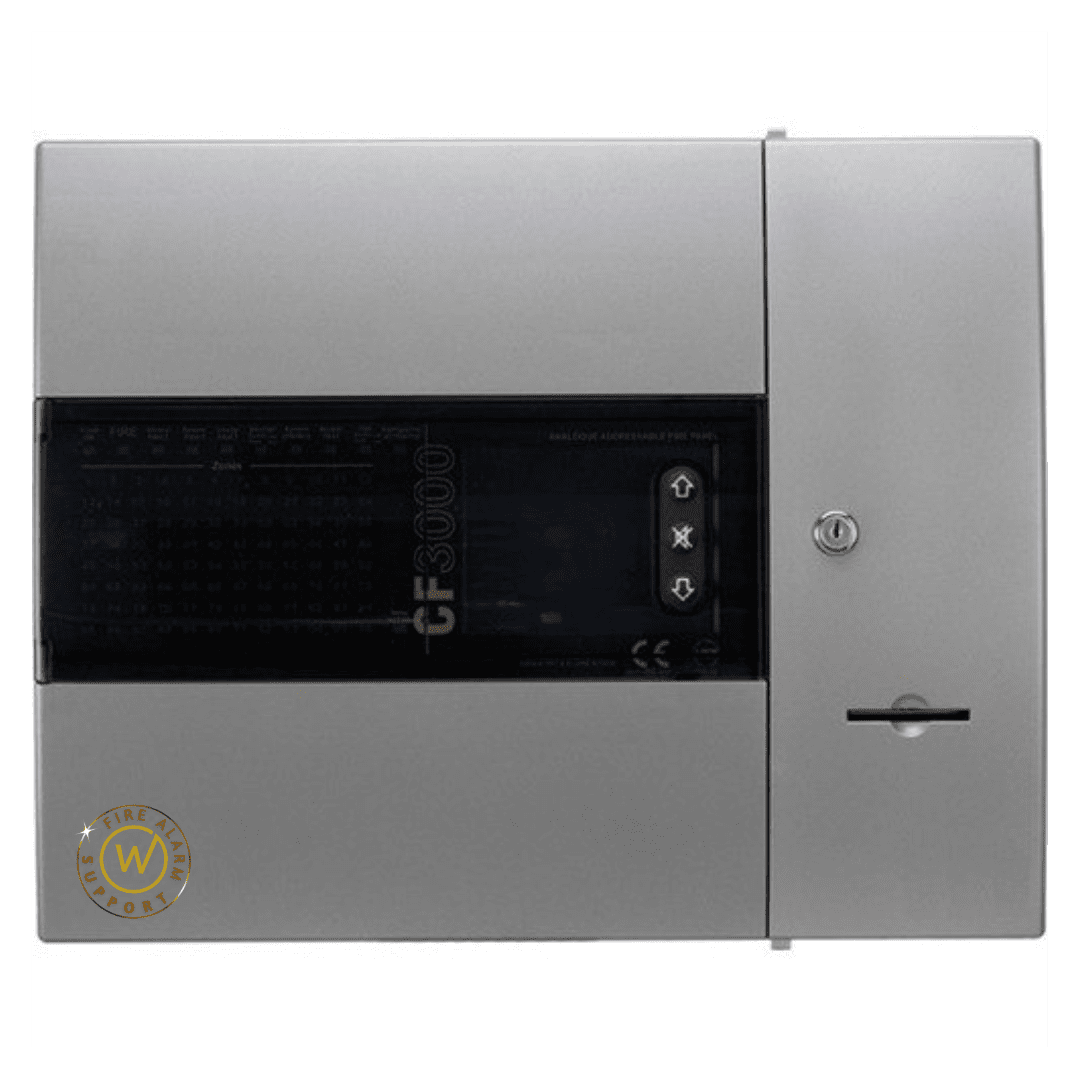

Cooper CF30002G Intelligent Addressable 2-Loop Control Panel.
The Cooper CF3000 is a high-spec intelligent addressable control panel that is available in various loop configurations. These panels combine sophisticated functionality with simple operation and an aesthetically pleasing design. The large capacity, ability to support complex cause-and-effect programming, and wide range of user-controllable functions make the system suitable for a diverse range of projects, from sheltered housing to large office developments.
The CF3000 uses soft addressing to minimise installation time and remove the potential for error associated with manual addressing. It can operate as a stand-alone panel or as part of a networked system. They have powerful programming options that allow configurable control over whether messages from specific panels are transmitted around the network or remain local. An extensive range of compatible intelligent addressable system ancillaries are available to work with the CF3000, all of which incorporate an integral short circuit isolator to provide maximum protection against short circuits on the external loop.
Fire Alarm System Fetures and Benefits

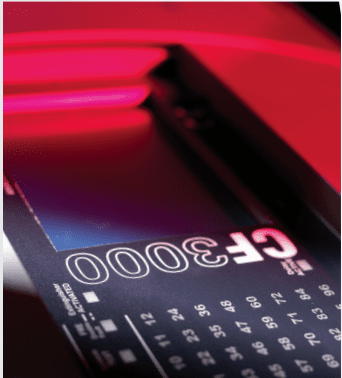

EATON CF3000 Panel: Cooper, Addressable, Control Panels, Large System, EN/UL Systems. The CF3000 series are high specification intelligent addressable control panels, which are fully certified to EN54 parts 2 and 4.
- Available in 1, 2 and 4 loop versions
- Up to 200 addresses per loop
- Full network capability up to 126 panels
- Soft addressing
- Simple to operate end-user touch-screen interface
- Flexible distributed network capability
- Full range of compatible accessories
- Full system integrity-managed protocol
- A large, versatile touch-screen user interface
- Multi-language selection capability
- Integral printer (optional)
- Flexible cause-and-effect programming
- Event History Buffer (9,999 events) with Date/Time stamp
- Easy to design system cause and effect using site installer software
Repeater Panels

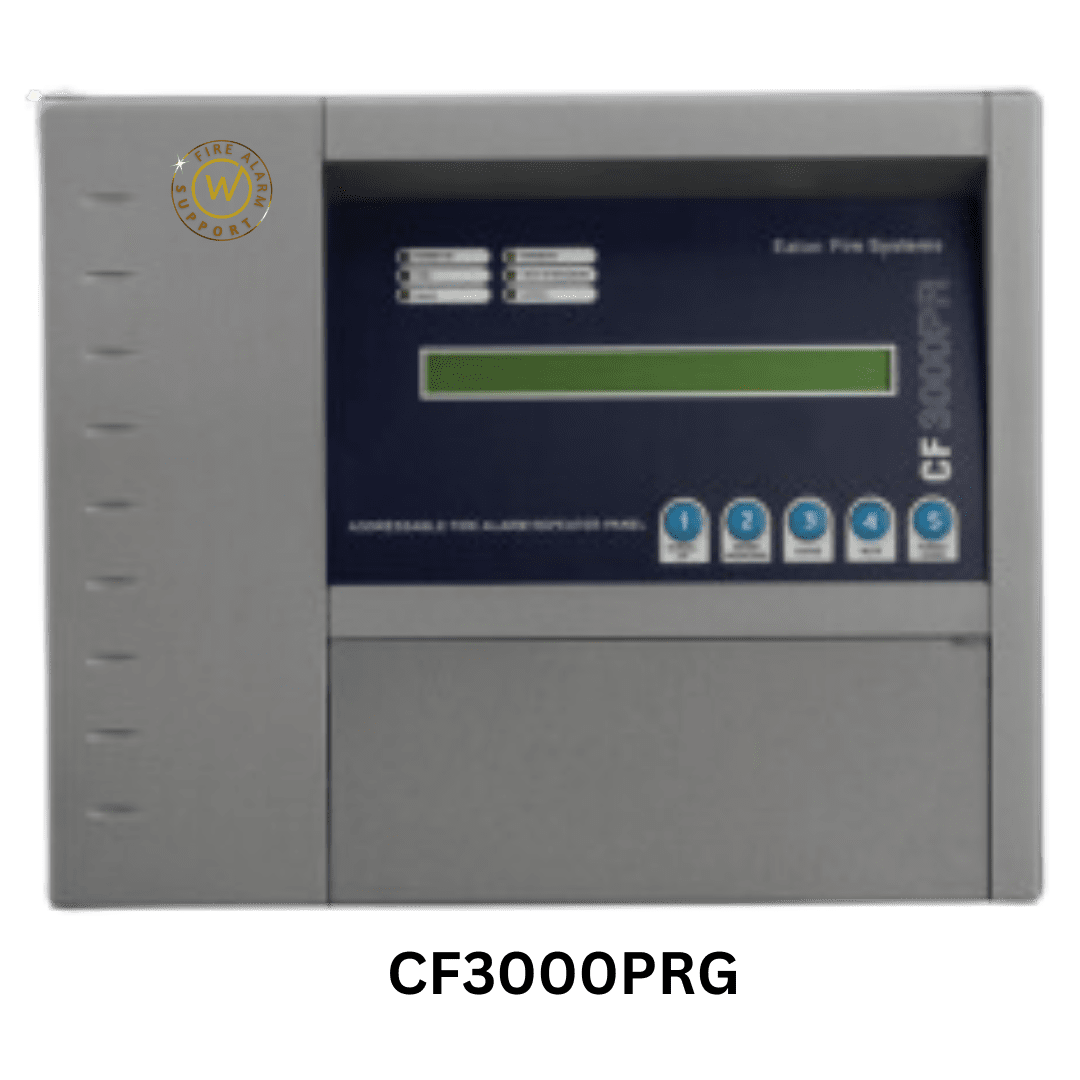

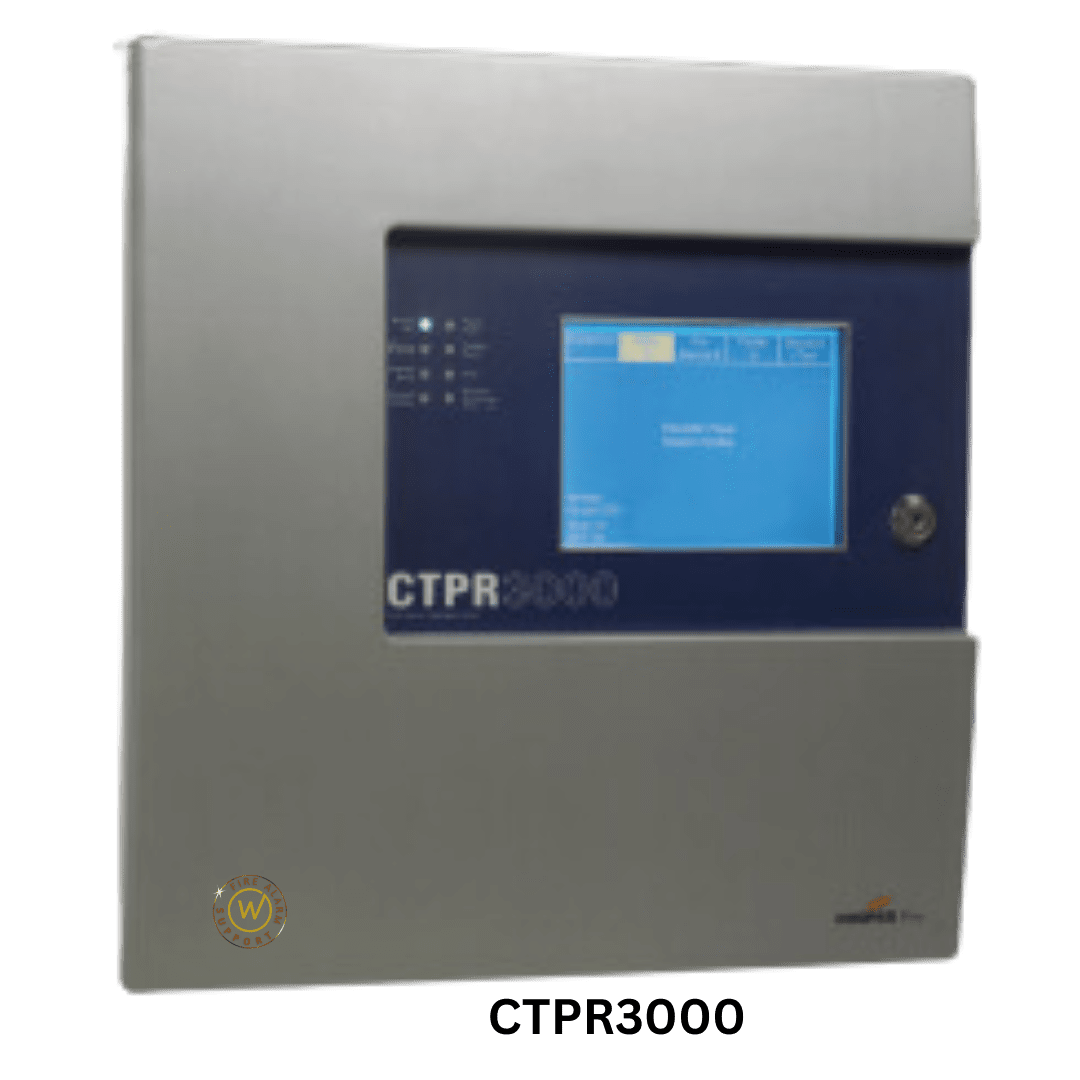

The CF3000 has both a passive and a touchscreen repeater panel available. Ideal for larger sites, the repeater allows you to display system information at multiple locations.
- Active or passive option
- Integral battery and power supply
- Supervisor and engineer modes through code access
|
|
