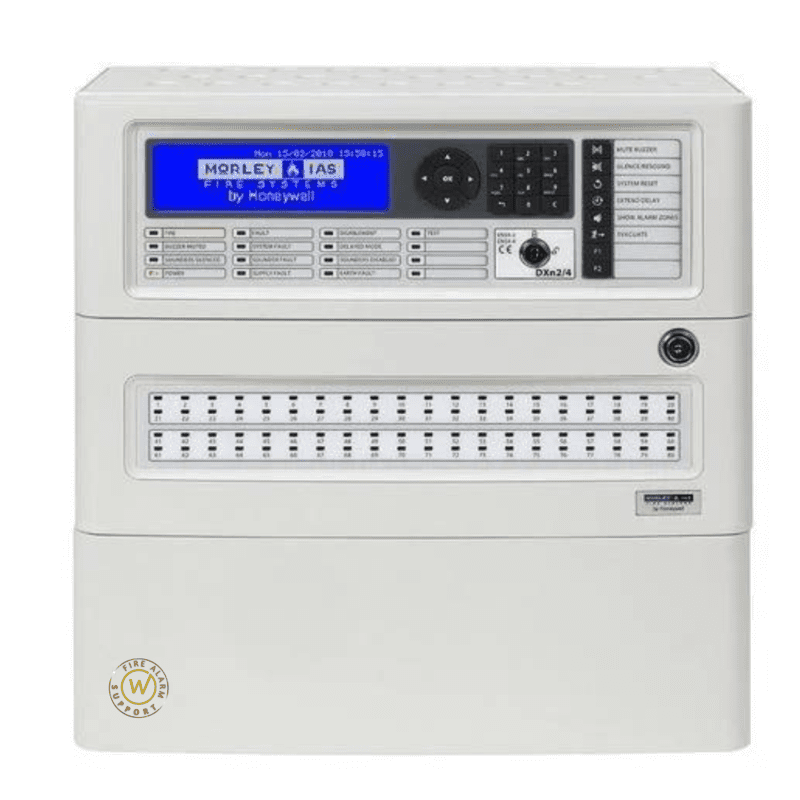

Honeywell Morley 1 Loop Panel

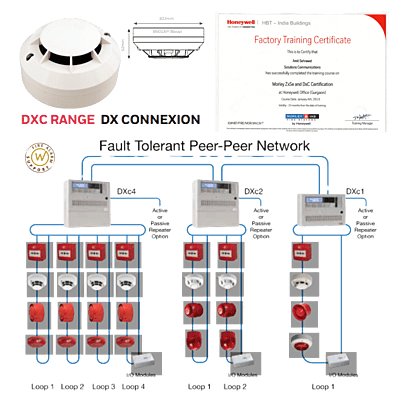

This addressable, single loop fire detection system supports Morley protocol. It comes with two sounder circuits (1A max), a 2A power source, a general relay (Alarm and Fault), one programmable relay, fixed auxiliary output and resettable 24V 250mA output, two keys and two inputs for programmable functions. The panel also includes a 6 * 40 Character LCD display, an integrated USB port for PC programming and an RS485 port for repeaters. The DXc1 can operate as a stand-alone device or as part of a networked system with other DXc series panels in up to 16 loops.
Choose Quantity
Rs.58,000.00 Rs.66,000.00
+ Yes! I am Intrested+ Adding to cart
Product Details

Honeywell Morley Dx 1Loop Fire Alarm System

The CD contains a loop and battery calculator, manuals and programming software to allow the display to be customised and address labels to be imported from an Excel file.

The DX Connexion range of fire alarm control panels has been developed to be the most time efficient fire panel on the market to install. Simply fix the control panel to the wall, connect the field wiring, power up and in as few as five button presses you can have a compliant, working fire alarm system. The panel’s large graphical display provides a clear menu structure making the whole initial set-up process quick, clear and intuitive.

Additionally, programming the control panel couldn’t be easier. Complex configuration can be achieved by using either the panel’s mobile phone stylekey pad or by using the Windows PC programming tool supplied with the panel.

Morley IAS Addressable Fire Alarm Control Panel

Morley Fire Alarm System
  • Branding
    Honeywell/ Morley IAS
  • Zones
    Upto 20Zone/Individual LED Indicator/Max200/120Software Zones
  • Display
    6x40 character (240x64 pixels) blue liquid
  • Serial Interface
    3Serial Port/RS485/RS232 plugin Card
  • LED Type Zone Indicator
  • PSU
    220VAc/ 24VDc/ 2Amp
  • Standby Batteries
    2 x 7Ah
  • Loops in Panel
    1 Loop
  • Loop Capacity
    Max 99 Sensor/ Max 99 Module Addresses per loop
