DXC2
Tags:
Honeywell Morley 2 Loops Panel
Choose Quantity
Rs.85,000.00 Rs.96,000.00
Product Details
Specifications

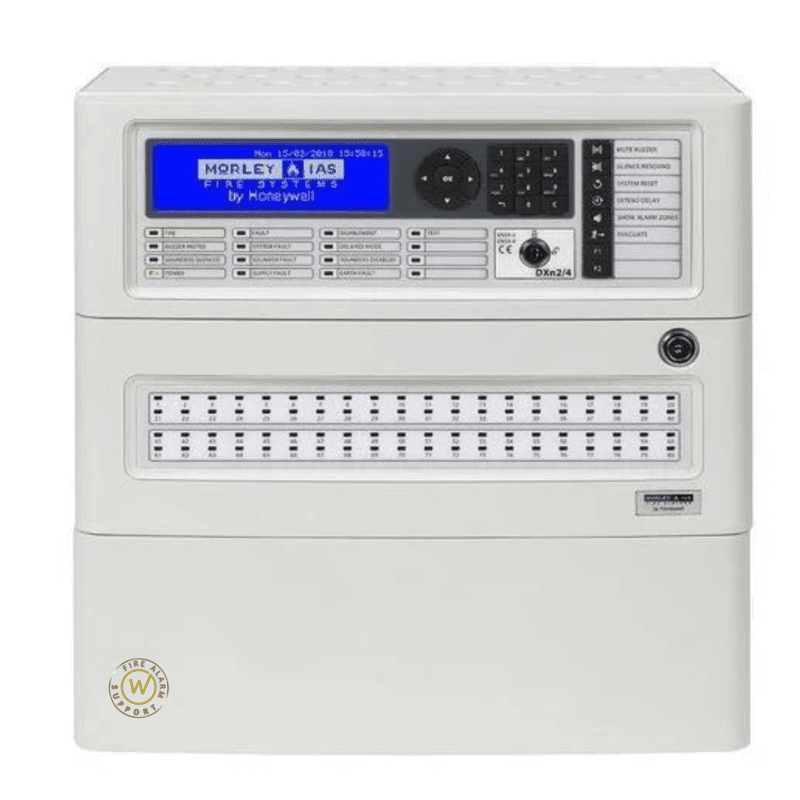

Honeywell Morley Dx 2Loops Fire Alarm System
The CD contains a loop and battery calculator, manuals and programming software to allow the display to be customised and address labels to be imported from an Excel file.
The DX Connexion range of fire alarm control panels has been developed to be the most time efficient fire panel on the market to install. Simply fix the control panel to the wall, connect the field wiring, power up and in as few as five button presses you can have a compliant, working fire alarm system. The panel’s large graphical display provides a clear menu structure making the whole initial set-up process quick, clear and intuitive.
Additionally, programming the control panel couldn’t be easier. Complex configuration can be achieved by using either the panel’s mobile phone stylekey pad or by using the Windows PC programming tool supplied with the panel.
Morley IAS Addressable Fire Alarm Control Panel
Morley Fire Alarm System
- BrandingHoneywell/ Morley IAS
- ZonesUpto 20Zone/Individual LED Indicator/Max200/120Software Zones

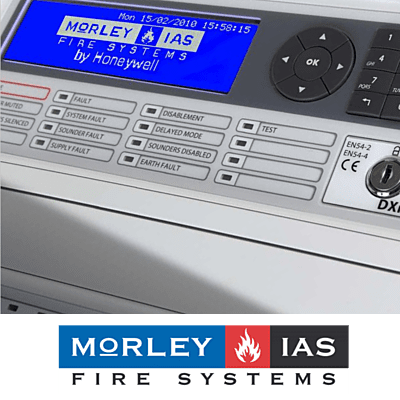

- Display6x40 character (240x64 pixels) blue liquid
- Serial Interface3Serial Port/RS485/RS232 plugin Card
- LED Type Zone IndicatorFIRE/FAULT/TEST/Disabled
- PSU220VAC / 24VDC / 4Amp
- Standby Batteries2 x 7Ah
- Loops in Panel2Loops
- Loop CapacityMax 99 Sensor/ Max 99 Module Addresses per loop
|
|
