NFS-320
Tags:
Honeywell Notifire Fire Alarm Panel

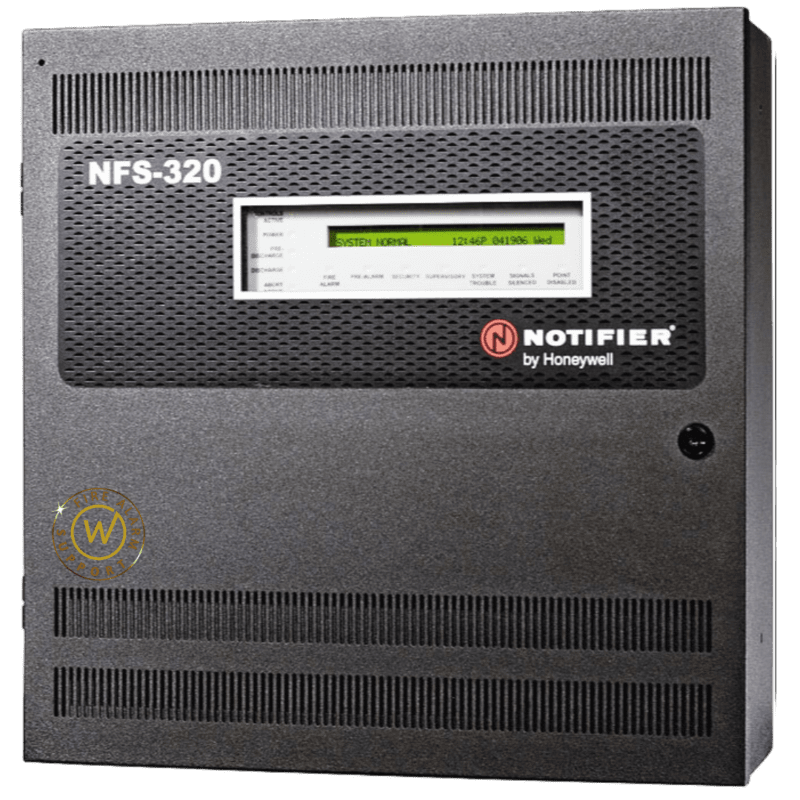

The NFS-320 intelligent Fire Alarm Control Panel is part of the ONYX® Series of Fire Alarm Controls from NOTIFIER.
In stand-alone or network configurations, ONYX Series products meet virtually every application requirement.
The NFS-320’s modular design makes system planning easier. The panel can be configured with just a few devices for small building applications, or networked with many devices to protect a large campus or a high-rise office block. Simply add additional peripheral equipment to suit the application. Wireless fire protection can be added with the SWIFT wireless gateway and devices.
For installations using NFS-320C, an optional ACM Series annunciator can be mounted in the same cabinet (up to 48 zones/points, order separately)
Choose Quantity
Rs.250,000.00
Product Details
Specifications
Honeywell Notifire UL Fire Alarm System
ONYX® Series panels integrate with the Connected Life Safety Services (CLSS) platform through the CLSS Gateway, providing connectivity to central station, cloud, and mobile applications. (See HON-62034.) This cloud-based functionality provides reliable protection and remote monitoring of the system, reduced manual data entry, and reporting.
Features
One isolated intelligent Signaling Line Circuit (SLC) Class A, B, or X.
Built-in Alarm, Trouble, Security, and Supervisory relays.
Up to 159 detectors and 159 modules per SLC; 318 devices maximum.
– Detectors can be any mix of photo, thermal, or multi-sensor; wireless detectors are available for use with the FWSG(A).
– Modules include addressable pull stations, normally open contact devices, two-wire smoke detectors, notification, or relay; wireless modules are available for use with the FWSG(A).
Autoprogramming and Walk Test reports.
Battery charger supports 18 – 200 AH batteries.
Multicolor LEDs blink device address during Walk Test
ULC listed models available; -A models are ULC Listed
Notifire Fire Alarm System
- BrandHoneywell Notifire
- Zonesup to 48 zones
- DisplayLCD 80 characters (2 x 40) with long-life LED backlight.
- Serial Interface232 & 485 Ports
- PSUNFS-320E: 220/240 VAC, 50/60 Hz, 2.5 A
- Loops1 Loop
- Loop CapacityUp to 159 detectors and 159 modules per SLC
- ApprovalsUL/ULC Listed: S635 / FM Approved / UL 864, 10th edition
|
|
