Sonos Pulse Beacon Wall
Tags:
EN54-23 Beacons & Sounder Beacons
Klaxon Signals’ range of EN54-23 approved fire beacons and sounder beacons ensures reliable alerts for all personnel, including those with sensory impairments or working in sensory-challenging environments. With advanced wide-area illumination and high-performance audible signaling, evacuation procedures become faster, clearer, and more inclusive—helping everyone feel safer and more protected during emergencies.

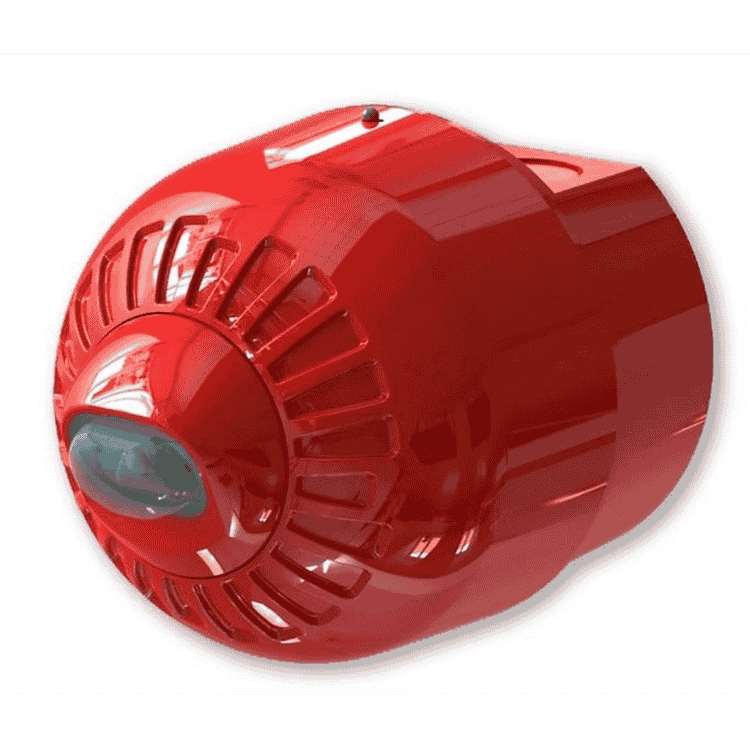

Sonos Pulse Beacon Wall
Sonos Pulse wall mounted Visual Alarm Devices are available as fire beacons or combined sounder beacons.
- White flash: EN54-23 coverage W-3.1-11.3
- Red flash: EN54-23 coverage W-2.4-7.5
Choose Quantity
Rs.4,166.66 Rs.9,300.00
Product Details
Klaxon Sonos Pulse Beacon Fetures
- Conforms to EN54-23
- Pulse Alert Technology
- Body Colour: Red or White
- Flash Colour: Red or White
- Wire to Base Technology
- Simple Upgrade
- Synchronised Flash
- No Surge Current
- Weatherproof
Sounder Spacification
Voltage: 17-60 VDC
Current @ 0.5Hz: 20mA
Current @ 1Hz: 40mA
IP Rating: IP33 (deep base) IP21 (shallow base)
Operating Temp: -25ºC to +70ºC
Construction: Flame Retardant Polycarbonate
Cable Entries: Deep Base: 2 x 20mm cable glands
Weight: 0.24kg (shallow base) 0.29kg (deep base)
Kalaxon Sounder Benefits
| Feature | Benefit |
|---|---|
| Conforms to EN54-23 | Exceeds the illumination requirements of EN54-23 |
| Pulse Alert Technology | Patented electronic design maximises system efficiency by minimising power consumption |
| Up to 11.3m Coverage volume | Reduces the number of devices required most rooms can be protected with a single device |
| Wire to Base Technology | Installation is quick and simple with mounting and wiring made only to the base the head clicks on to the base during commissioning |
| Simple Upgrade | Sonos Pulse VADs share the same base mounting and wiring as previous versions making the transition to Pulse versions as simple as possible |
| Optimum Performance Level | Pulse Alert Technology enables the coverage pattern to be fixed at the optimum performance level |
| Synchronised Flash | Sonos Pulse VADs protect everyone including people prone to photosensitive epilepsy |
| No Surge Current | Eliminates power surges during system start up |
| Weatherproof | Surpasses the Ingress Protection requirements of EN54-23 making them suitable for a wide variety of environmental conditions |
|
|
